精密橡膠粗胚成型機 GDE-75-G

Easy manipulation, large output, high density, and exterminate bubble problem.

Products

properties

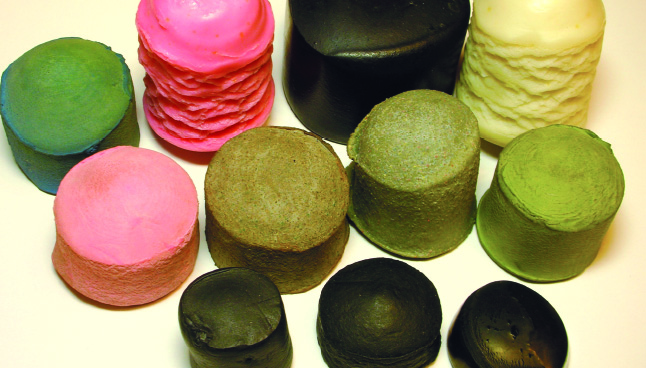

◎Solid Rubber Wheel, Industrial Caster & Wheel, Shopping Cart Wheels, Luggage & Suitcase Casters & Wheels, various Rubber Products; any products need to slice before vulcanizing.
◎The power device of the machine consists of double conic screw and an extruder and both are power driven. Consequently, cleanliness is dept and rubber can be prevented from being polluted by hydraulic oil. Maintenance is simple and easy.
◎Precise temperature control:
The standard piston system is only equipped with a simple heater to heat the extruding cylinder and the extruding head. However, this machine has temperature controllers which can heat and cool the surface of the machine part that comes into contact with materials. As a result, continuous and fast changes can be made during the production process even when materials requiring different processing temperatures are replaced (e.g. a lower temperature for silicone rubber). As there is almost no air mixed in the finished products, the quality and the quantity are increased.





specification
Model

  Double conic Screw Motor
(HP)
  Screw DIA
(MM)
  Single Screw Motor
(HP)


Output
(KG / HR)



Cutter Motor
(HP)



Cutter Speed
(RPM/MIN)

  Speed Change of Cutter



Weight of Remain
(G)

GDE-40-G   1   40 5 10~15 1 250 可無段調整   50
GDE-75-G   5   75 20 100 3 250 可無段調整   500
GDE-100-G   7.5   100 30 200 5 250 可無段調整   1000
GDE-125-G

7.5

  125 50 300 5 250 可無段調整   1200

* Spec are subiect to for betterment




applications

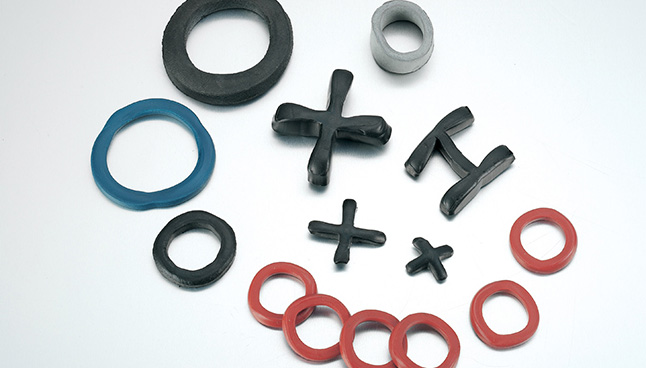

  • Small solid rubber tyres

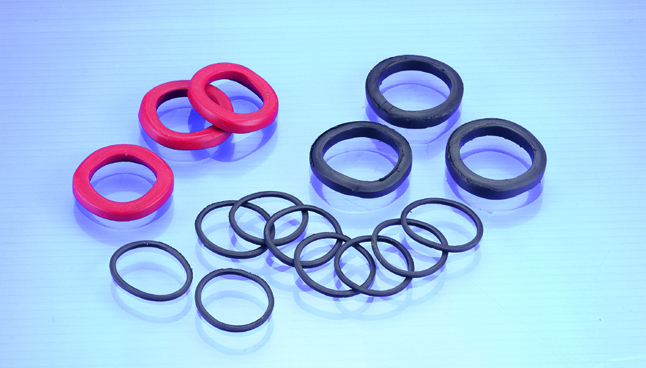

  • Precision O rings, seals & gaskets
  • Rubber discs, diaphragms & Grommets Engine/machine mounts
  • Bowling balls
  • Tennis balls
  • Golf balls
  • Sponge balls
  • Hockey pucks
  • Roller skate wheels and similar
  • Rubber electrical plugs / connectors / components
